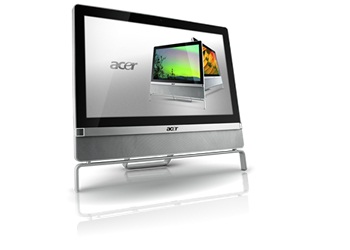

AZ5801 ,Originální Windows® 7 Home Premium, i7 2600S 3,1GHz / 2TB SATA / 8GB DDR3 / BR&DVD RW SLOT-IN / NVIDIA GT530, 2GB / SWORDFISCH KB / Hybrid TV tuner and Receiver / Wireless NIC Mini-PCI / BT / 24" LED Touch Monitor (1920x1080) s reproduktory a webkamerou



Technická specifikace  - obecná pro řadu

Model Z5801
Chipset Intel
- North Bridge H67
- Sourth Bridge
Housing kit
- Chassis name TBD
- Bezel TBD
- Web Cam 2 MP stand-alone webcam with 1600 x 1200 resolution
- Dimension (mm) TBD
- Number of 5.25" ODD drive bays 1
- Number of 3.5" HDD drive bays 1
- Number of 2.5" HDD drive bays 0
- Front I/O USB Port 2
- Rear I/O USB Port 4
- Front I/O Audio Jack 2
- Front I/O 1394 port 0
- Card Reader USB 2.0 6 in 1
- S/PDIF Out 1 Optical
- Toolless drive bay for HDD & ODD No
Power supply
- Watt 250W
- Energy star compliance 5.0 No
Mother Board Spec
- Form Factor Proprietary
- FMB / TDP 95W for UMA, 65W for GPU
- CPU Intel
- CPU Type Sandy Bridge
- CPU  Socket Type LGA 1155
- Memory SO DIMM
- Memory Type DDR III 1333
- Dual/Single Channel Memory Dual
- Number of Memory Slots 4
- Maximum Memory Onboard 16GB
- HDD
- HDD Interface SATA 3.0Gb/s/6.0Gb/s
- Number of SATA Ports 3
- Number of PATA Ports 0
- Support  "RAID Ready" No
- VGA
- Intergrated Graphics Intel HD Graphics
- Max. shareVGA memory TBD
- Dsub Port 0
- DVI port 1
- HDMI Port "HDMI In *2
HDMI Out *1"
- DirectX DirectX 10
- LAN
- LAN Speed 10/100/1000 Mbps
- LAN Port 1
- Audio
- Audio codec Realtek ALC888S
- Sound playback 5Wx2 internal speaker
- Rear Audio Jacks 0
- Rear S/PDIF port 1 Optical
- eSATA
- Rear eSATA port 1
- 1394
- Rear 1394 port 0
- on board header 0
- Expansion
- Number of PCIe x16 slot 1
- Number of PCIe x1 slot 0
- Number of PCI slots 0
- Number of internal mini PCI slot 0
- Number of internal mini card slot 2
- Number of Serial Ports (COM1) 0
- Number of Serial Ports on board header (COM2) 0
- Number of Parallel Ports 0
- Number of Rear USB Ports 4x USB2.0, 2 x USB3.0
- Number of PS2 ports 0
AIO Panel Spec
- Support Touch ? (Y/N) Y
- Size (inch) 24"
- Glare (Y/N) N
- Pixel Pitch (mm) 276.75 (H) X276.75 (W)
- Max. Resolution 1920x1080 pixels
- Backlight LED
- Brightness (cd/m2) 250
- Response Time (ms) 25
- Contrast Rate 3000
- View Angle "Horizontal : -89~+89 degree
Vertical: -89~+89 degree"
