Host Bus: 1-lane 2.5 Gb/s PCI Express
   Number of Ports: Four Internal SATA ports + One Internal PATA ports
   Form Factor: Standard Type
   Boot ROM: Yes


Introduction

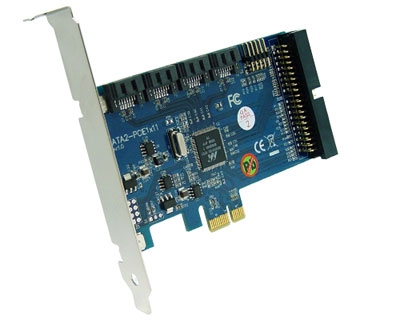

SATA2-PCIE1x11 is a multiple port Serial ATA (SATA)/Parallel ATA (PATA) to PCI Express (PCIE) Host Adapter. SATA2-PCIE1x11 takes advantages of the 2.5 Gb/s burst rate of 1-lane PCI Express bus and the Serial ATA Generation 2 transfer rate of 3.0 Gb/s (300 MB/s) interface. This solution provides full PCI Express and Serial ATA (SATA)/Parallel ATA (PATA) functionality and performance. SATA2-PCIE1x11 delivers the performance and connectivity required for servers and I/O demanding applications such as CD-ROM servers, Video-On-Demand, database servers, workstations, high-end desktops, software RAID sub systems, and image systems.

SATA2-PCIE1X11 supports a high reliable and extremely fast variety of storage applications (RAID 0, 1, 10, 5 and JBOD).

Technical Specification

   PCI Express 1.0a compliant - Supports 1-lane 2.5 Gb/s PCI Express interface
   PCI Express Programming interface
       Compatibility mode via PCI I/O access for legacy host software
       Enhanced Mode for SATA ports via Enhanced Mode Registers.
       Enhanced Mode for PATA port via Enhanced Mode Registers.
   Supports up to 2Mbit external Flash for option ROM or Boot ROM
   Supports SPI Flash Interface for retrieving boot code and vendor specific PCI Configuration content.
   Supports TWSI EEPROM interface for retrieving vendor specific PCI Configuration content.
   Serial ATA (SATA) specification 2.5 compliant.
       Supports SATA PHY 3.0 Gb/s with speed negotiation to SATA 1.5Gb/s.
       Supports electrical specifications of Gen1i, Gen1m, Gen1x, Gen2i, Gen2m, Gen2x, and usage models of eSATA and xSATA
       Supports four independent Serial ATA ports
   Serial ATA (SATA) protocols over SATA ports.
       ATA and ATAPI commands
       Native Command Queuing (NCQ)
       Hot Plug
       Port Multiplier
       Supports SATA Port Selector Switching
   Parallel ATA (PATA) protocols over PATA port.
       Supports one Parallel ATA port
       ATA and ATAPI commands
       All modes of PIO, Multiword DMA, and Ultra-DMA (up to 150MB/s)
       Tagged Command Queuing (TCQ) with 32 outstanding commands per port
       Master and Slave configuration (over PATA port)
   Supports interrupt Coalescing over SATA and PATA ports in Enhanced Mode.
   Supports SMBus for communication with Hardware Monitoring ICs.


Computer Platfrom
PC with 1-lane 2.5 Gb/s PCI Express slot
Operating System Requirements
Windows 2000/XP/Windows Server 2003/Vista
