POPIS:

Špičkový ventilátor nové generace NF-A14 PWM. Je vybaven druhou generací osvědčených SSO ložisek a novou PWM IC technologií Smooth Commutation Drive (SCD) pro plně automatické řízení rychlosti otáček, tichý chod a malou spotřebu.

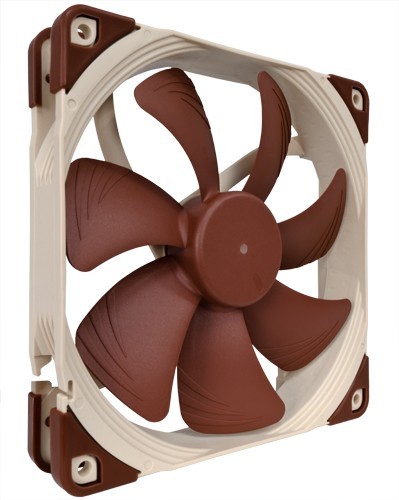

The NF-A14 is a premium quality quiet 140mm fan with a square frame that complies with Noctua’s AAO (Advanced Acoustic Optimisation) standard. Its square shape and 140mm mounting holes (124.5mm spacing) make it ideal for use on watercooling radiators or as an upgrade for 140mm case fans. Featuring sophisticated aerodynamic design measures such as Flow Acceleration Channels, the NF-A14 further improves the renowned quiet cooling performance of the award-winning NF-P14. The PWM version sports Noctua’s custom designed NE-FD1 IC for fully automatic speed control via 4-pin fan headers and comes with a Low-Noise-Adaptor to reduce the maximum speed during PWM control from 1500rpm to 1200rpm. Its performance-oriented 1500rpm top speed and comprehensive speed control options make the NF-A14 PWM an elite choice for users who strive to strike a perfect balance between excellent cooling capacity and superb quietness of operation, be it on watercooling radiators, on heatsinks or in case ventilation.
Size                                                                          140x140x25 mm
Connector                                                4-pin PWM
Bearing                                                SSO2
Blade Geometry                                                A-Series with Flow Acceleration Channels
Frame Technology                                                AAO (Advanced Acoustic Optimisation)
Rotational Speed (+/- 10%)                                1500 RPM
Rotational Speed with L.N.A. (+/- 10%) 1200 RPM
Min. Rotational Speed (PWM, +/-20%) 300 RPM
Airflow                                                140,2 m^(3)/h
Airflow with L.N.A.                                115,5 m^(3)/h
Acoustical Noise                                24,6 dB(A)
Acoustical Noise with L.N.A.                19,2 dB(A)
Static Pressure                                2,08 mm H2O
Static Pressure with L.N.A.                1,51 mm H2O
Max. Input Power                                1,56 W
Max. Input Current                                0,13 A
Voltage                                                12 V
MTBF                                                > 150.000 h
Scope of Delivery

   Low-Noise Adaptor (L.N.A.)
   4-Pin Y-Cable
   30cm Extension Cable
   4 Vibration-Compensators
   4 Fan Screws
