TRANSCEND MTE652T2 512GB Industrial 3K P / E SSD disk M.2, 2280 PCIe Gen3 x4 NVMe 1.3 (3D TLC), 2100MB / s R, 1000MB / s W

Výrobce: Transcend

Kód: 779600

PartNumber: TS512GMTE652T2

EAN: 0760557848615

Váha: 0.024 kg

Obvyklá dodací lhůta: 14 (dny)

Záruční lhůta: 36 (měsíce)

Záruční lhůta EU: 36 (měsíce)

Celní zařazení: 84717098 … více informací

84717098 0.00 Paměťové jednotky - ostatní (např. SSD)disky) 21%
Přihlásit se

Vaše cena a stav skladu se zobrazí po přihlášení.

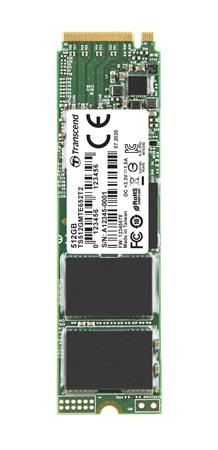

Obrázek produktu
Kapacita 512 GB
Otáčky 0
Provedení Interní
Rozhraní PCI Express
Rozměr M.2 slot
Typ SSD
Výrobce Transcend
TRANSCEND MTE652T2 512GB Industrial 3K P/E SSD disk M.2, 2280 PCIe Gen3 x4 NVMe 1.3 (3D TLC), 2100MB/s R, 1000MB/s W

Transcend's MTE652T2 M.2 SSD features the PCI Express (PCIe) Gen 3 x4 interface and is compatible with NVM Express (NVMe) 1.3 specifications, delivering unparalleled transfer speeds. The MTE652T2 features the latest 3D NAND technology for higher storage efficiency, 30µ" PCB gold finger and Corner Bond technology for enhanced durability, built-in DRAM cache for fast access, an extended operating temperature range from -20°C to 75°C, and an endurance rating of 3K Program/Erase cycles for reliable operation.

Features:
DRAM Cache embedded
30µ" PCB gold finger
Endurance: 3K P/E cycles (Program/Erase cycles) guaranteed
PCIe Gen 3 x4 interface
Key components fortified by default with Corner Bond technology
Compliant with PCI Express specification 3.1
Compliant with NVM Express specification 1.3
Supports NVM command
SLC caching technology
Built-in LDPC ECC (Error Correction Code) functionality
Dynamic thermal throttling
Compliant with RoHS 2.0 standards
Supports Transcend SSD Scope Pro software

Specifications:
Dimensions: 80 mm x 22 mm x 3.58 mm (3.15" x 0.87" x 0.14")
Weight: 9 g (0.32 oz)
Form Factor: 2.5"
M.2 Type:2280-D2-M
Bus Interface: NVMe PCIe Gen3 x4
Flash Type: 3D TLC NAND flash
Capacity: 512 GB
Operating Voltage: 3.3V±5%
Operating Temperature: Extended-20°C ~ 75°C
Storage Temperature: -40°C ~ 85°C
Humidity: 5% ~ 95%
Shock: 1500 G, 0.5 ms, 3 axis
Vibration (Non-operating): 20 G (peak-to-peak), 7 Hz ~ 2000 Hz (frequency)
Power Consumption (Operation): 3.3 watt(s)
Power Consumption (Sleep): 0.6 watt(s)
Sequential Read/Write (CrystalDiskMark, max.):
- Read: 2100 MB/s
- Write: 1000 MB/s
4K Random Read/Write (IOmeter, max.)
- Read: 165,000 IOPS
- Write: 235,000 IOPS
Mean Time Between Failures (MTBF): 3 000 000 hour(s)
Terabytes Written (Max.): 1080 TBW
Drive Writes Per Day (DWPD): 2 (3 yrs)

Note
Speed may vary due to host hardware, software, usage, and storage capacity.
The workload used to rate DWPD may be different from your actual workload, which may vary due to host hardware, software, usage, and storage capacity.

Certificate : CE/FCC/BSMI
Warranty: Three-year Limited Warranty

Warranty does not apply when SSD Scope's wear-out indicator displays 0% within the warranty coverage.

Due to the complexity and variety of industrial applications, Transcend cannot guarantee 100% compatibility with all platforms and under all scenarios. For special applications and environments, it is strongly suggested that you contact Transcend beforehand for clarification.
SSD Scope Pro software is required by request. Please contact us for more information.
