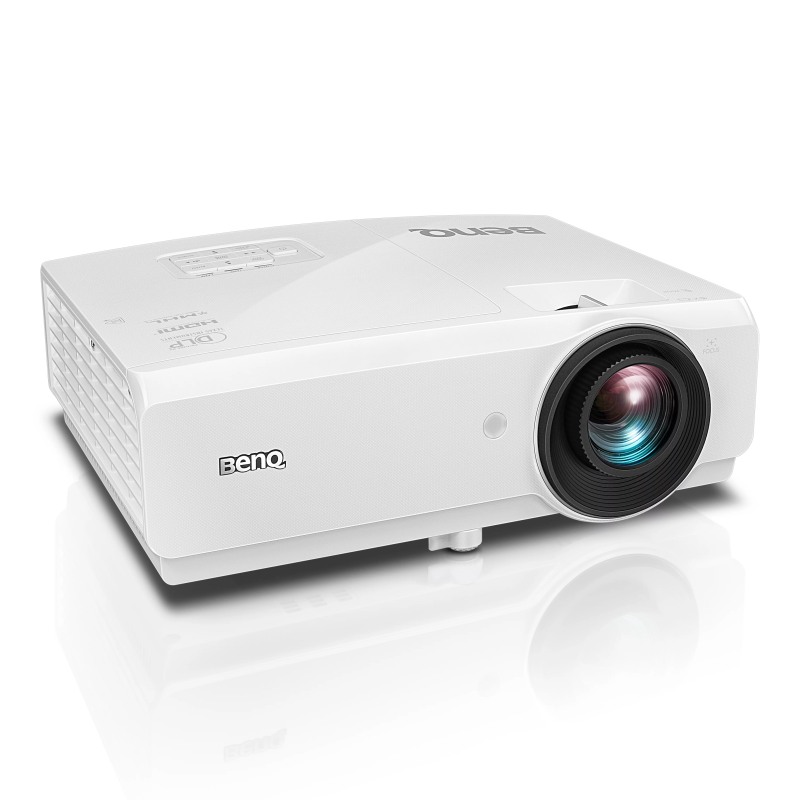

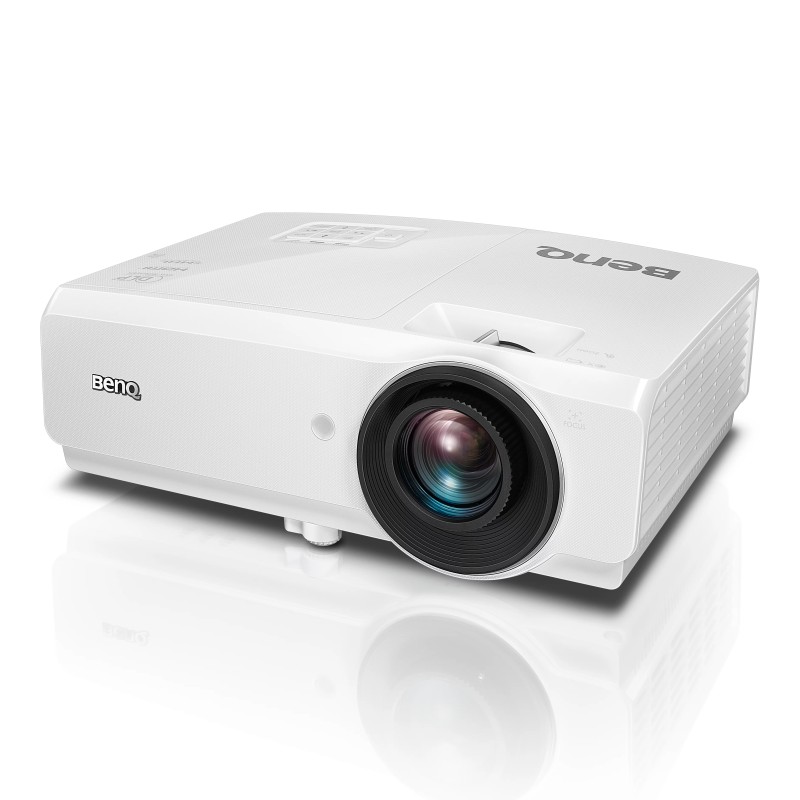

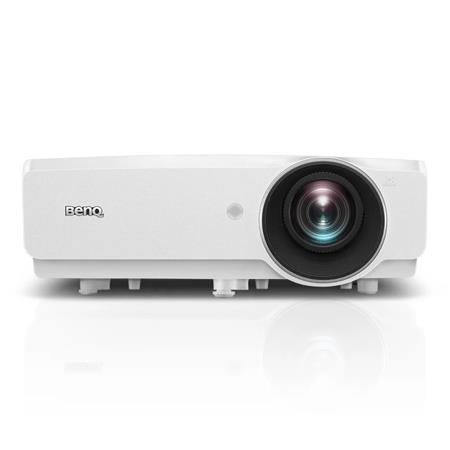

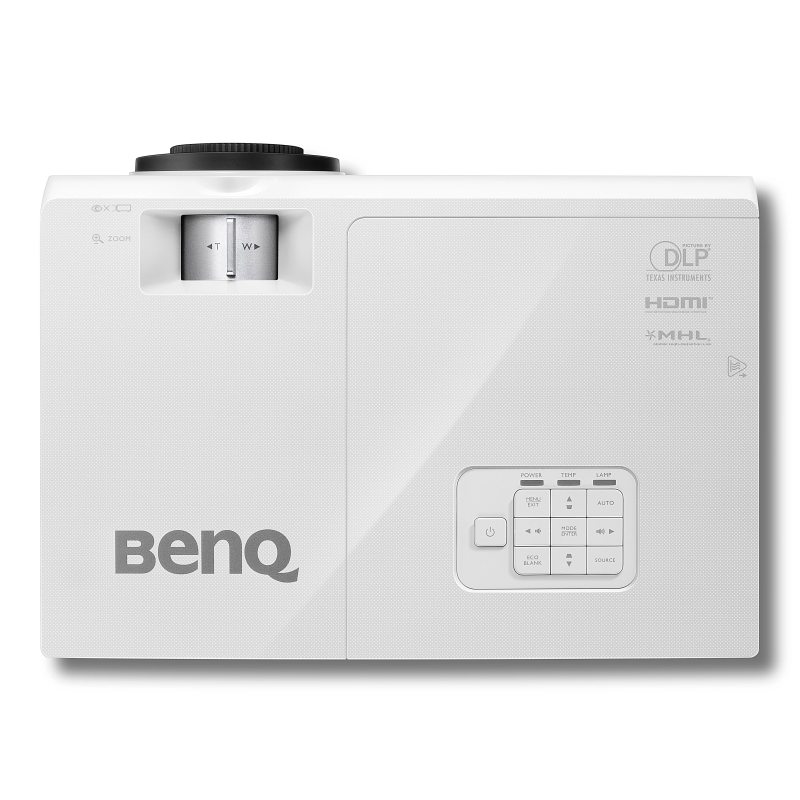

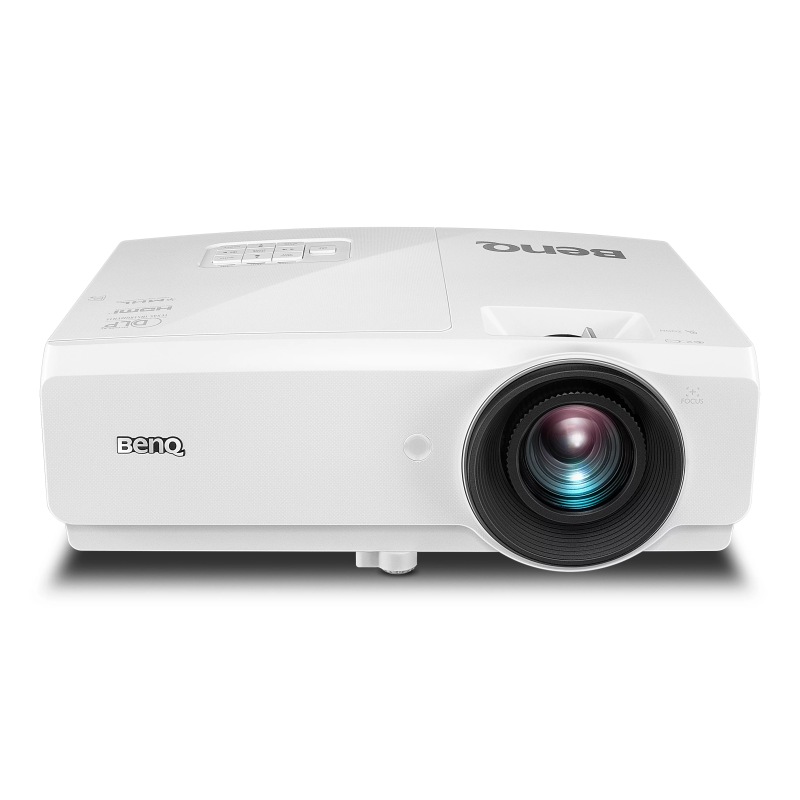

SH753P Installation Projector with 5000lms, Full HD

Powerful Projection Performance and High Integration Flexibility for Corporate Installations.
Ideal for efficient replacement of corporate projectors, BenQ SH753P delivers superior high brightness for effective visual communication in bright conference rooms and boardrooms. Comprehensively equipped for flexible installation, SH753P can smoothly integrate into existing centrally managed display infrastructures and provide additional versatility through a wide range of wireless presentation options.

Vivid Clarity in Ambient Environments
SH753P’s 5,000lm high brightness allows presenters and participants to deliver presentations in comfortably lit medium-sized conference rooms, while supporting uncompromised debate, collaboration, note-taking, and interaction to achieve the most productive meetings. The high luminance provides professional picture quality for installers to satisfy stringent corporate standards.

Full HD Resolution for Crisp Image Clarity and Increased Content Density
With Full HD (1920 x 1080) native resolution in expanded 16:9 aspect ratio, SH753P offers subtle details, ultra-sharp readability, and highly enhanced display capacity for professional presentations.

All Specifications
Display
Brightness (ANSI lumens) 5000
Native Resolution 1080P (1920x1080)
Native Aspect Ratio 16:9
Contrast Ratio (FOFO) 13,000:1
Display Color 30-bit (1.07 billion colors)
Light Source Lamp
Light Source Life a. Normal 2500 hrs, b. ECO 3500 hrs, c. SmartEco 4500 hrs

Optical
Throw Ratio 1.39~2.09
Zoom Ratio 1.5x
LensF/#= 2.42 ~2.97, f = 20.7 ~ 31.05mm
Projection Offset (Full-Height) 115%
Keystone Adjustment 2D, Vertical ± 30 degrees; Horizontal ± 30 degrees

Picture Modes 3D, Bright, Infographic, Presentation, sRGB, Vivid

Compatibility
Resolution Support VGA(640 x 480) to WUXGA_RB(1920 x 1200) *RB=Reduced blanking
Horizontal Frequency 15K~102KHz
Vertical Scan Rate 23~120KHz

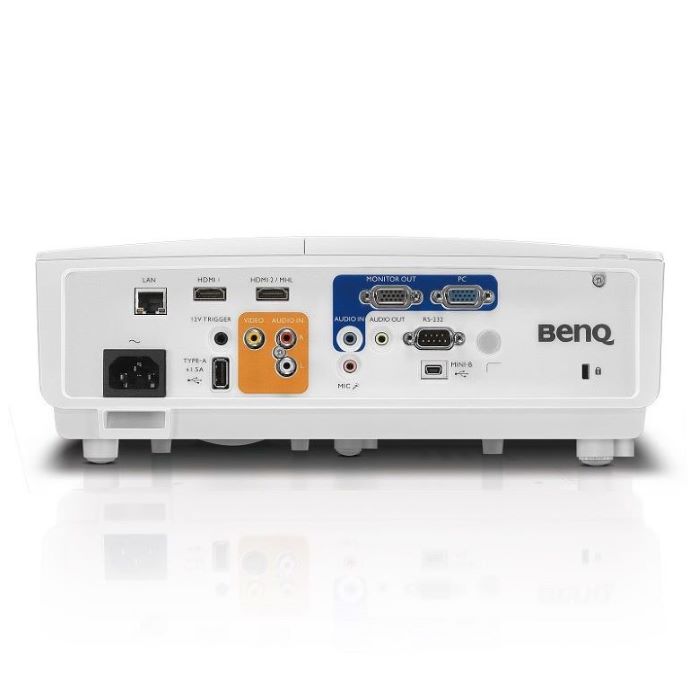

I/O Interface
PC in (D-sub 15pin) (x1)
Monitor out (D-sub 15pin) (x1)
Composite Video in (RCA) (x1)
HDMI in (x2), HDMI-1 (1.4a/HDCP1.4), HDMI-2 (1.4a/HDCP1.4/MHL)
LAN (RJ45) (x1)
USB Type A  (x1), USB Type A-1 (2.0/Power Supply1.5A)
USB Type Mini B (x1), USB Type Mini B-1(service/Page up&down)
RS232 in (DB-9pin) (x1)
DC 12V Trigger (3.5mm Jack) (x1)

Audio
Speaker(x1), 10W
Audio in (3.5mm Mini Jack) (x1)
Audio out (3.5mm Mini Jack) (x1)
Microphone in (Mini Jack) (x1)

Environment
Operating Temperature 0~40 C
Power Supply AC 100 to 240 V, 50/60 Hz
Typical Power Consumption (110V) 365W/110V
Stand-by Power Consumption <0.5W
Network Stand-by Power Consumption <2W
Acoustic Noise (Typ./Eco.)(dB) 36/31 dB

Accessories
Remote Control w/ Battery RCS011
Power Cord (by region) x1 (1.8M)
VGA(D-sub 15pin) Cable 1 (1.5m)
User Manual CD 1 (24L)
3D Glasses Optional), DGD5
Quick Start Guide (x1) 18L
Warranty Card (by region) Yes
Universal Ceiling Mount (Optional), CM00G3

Dimension & Weight
Dimensions (WxHxD) (mm) 314 x117 x 233
Net Weight (kg) 3.3 kg

Projection System DLP
