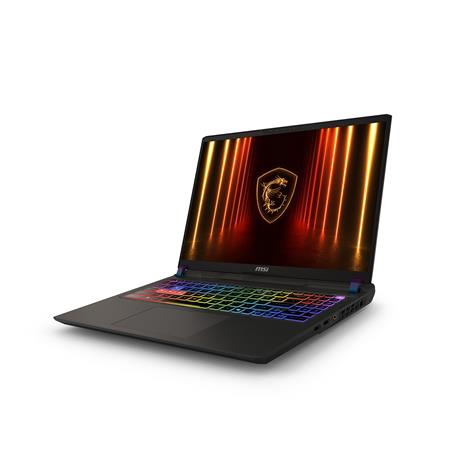

MSI Vector 16 HX AI A2XWIG-023CZ /Core Ultra 9 275HX/32GB/1TB/RTX 5080, 16GB/16" QHD+240Hz/Win11 Home

Part No 9S7-15M352-023
SKU Number
Website Name Vector 16 HX AI A2XWIG
Brand MSI
Platform INTEL
Series Name Gaming
Segment Name Vector
Segment Name2 Vector16HXAIA
Segment Name3 Vector16HXAI A2XWIG
Model 15M3
Model Name
MKT Name Vector 16 HX AI A2XWIG
Entity MKT Name
MKT Spec Vector 16 HX AI A2XWIG-023CZ
System/Barebone System
Chassis Color
Color ID5(GG)/Cosmos_Gray-Black-Cosmos_Gray-Cosmos_Gray

Chassis Material
A Side Metal
B Side Plastic
C Side Plastic
D Side Plastic
Display
Screen Size 16
Resolution IPS-Level QHD+
Pixel 2560x1600
LCD Features ANTI-GLARE
Screen Touch Non-touch
Frame Rate 240Hz
Response Time G to G 3ms
Color Range 100% DCI-P3

HDR Value N/A

Brightness 500 nits
CPU
CPU Type 24 CORE
CPU Core Name ARROW LAKE
CPU Socket FCBGA-2114pin
CPU Number Core Ultra 9 275HX
CPU Clock 2.7GHz
CPU Cores 24

Chipset
Chipsets HM870

Discrete Graphics
GPU1 Vendor NVIDIA
GPU1 MKT Name GeForce RTX5080
GPU1 Number RTX 5080

CPU and GPU Combined Power
Combined Power_Website Max. 240W CPU-GPU Power with MSI OverBoost Technology.

Cooling
Thermal Cooler Boost 5
Fan 2
Fan Technology N/A
Pipe 6
Vapor Chamber N/A
Video Memory
GPU1 VRAM Size 16GB
GPU1 VRAM Type GDDR7
Integrated Graphics
GPU1 Graphics_Website Intel® Graphics
Memory
Memory Size 16GB*2
Memory Module DDR5-5600
Memory(Slot) Max Speed Up to DDR5-6400
Memory Form N/A

Memory Slot and Max Capacity
Memory Max Speed Up to DDR5-6400
Memory Slot 2 Slots

Storage
SSD Interface PCIe GEN4x4 w/o DRAM NVMe
SSD Form Factor M.2-2280 M-KEY
SSD Size 1TB*1

HDD1 Interface N/A
HDD1 Form Factor N/A
HDD size N/A
HDD1 RPM N/A
ODD Type N/A
Multi Bay N/A

SSD Remark N/A
Storage Slot
SSD (NVMe PCIe Gen)_Website 1x M.2 SSD slot (NVMe PCIe Gen4), 1x M.2 SSD slot (NVMe PCIe Gen5) Compatible

LAN
LAN_Website 2.5 Gigabit Ethernet
LAN REALTEK/RTL8125BG-CG
RJ45 1x
Wi-Fi/ Bluetooth
WLAN/BT_Website Intel® Wi-Fi 6E AX211, Bluetooth v5.3
WLAN Version Wi-Fi 6E+BT
WLAN/BT INTEL/AX211.NGWG.NV
I/O Ports
Audio Line In NA
Audio Line Out NA
Digital out SPDIF NA
USB Ports
Type-C (USB3.1 Gen2 / DP / Thunderbolt™3) NA
Type-C (USB3.1 Gen2 / DP / Thunderbolt™3 optional) NA
Type-C (USB3.2 Gen2 / DP / Thunderbolt™3) NA
Type-C (USB3.2 Gen1 / DP / Thunderbolt™3) NA
Type-C (USB3.2 Gen2 / DP / Thunderbolt™3) with PD charging NA
Type-C (USB3.2 Gen2 / DisplayPort™) NA
Thunderbolt™ 4 (DisplayPort™/ Power Delivery 3.0) NA
Thunderbolt™ 4 (DisplayPort™/ Power Delivery 3.1) NA
Thunderbolt™ 4 (DisplayPort™) NA
Thunderbolt™ 5 (DisplayPort™/ Power Delivery 3.1) 2x
Thunderbolt™ (DisplayPort™/ Power Delivery 3.0) NA
Type-C (USB4® / DisplayPort™/ Power Delivery 3.0/ Thunderbolt™ 4 compatible) NA
Type-C (USB4® / DisplayPort™/ Power Delivery 3.1/ Thunderbolt™ 4 compatible)
Type-C (USB3.2 Gen2 / DisplayPort™/ Power Delivery 3.0) NA
Type-C (USB3.2 Gen2 / DisplayPort™/ Power Delivery 3.1) NA
Type-C (USB3.2 Gen1 / DisplayPort™/ Power Delivery 3.0)
Type-C (USB3.1 Gen1 / DisplayPort™) NA
Type-C (USB3.2 Gen1 / DisplayPort™) NA
Type-C USB3.1 Gen2 NA
Type-C USB3.2 Gen2 NA
Type-C USB3.2 Gen2 with PD charging NA
Type-C USB3.1 Gen1 NA
Type-C USB3.2 Gen1 NA
Type-A USB3.1 Gen1 NA
Type-A USB3.2 Gen1 NA
Type-A USB3.1 Gen1/ QC3.0 NA
Type-A USB3.2 Gen1/ QC3.0 NA
Type-A USB3.1 Gen2 NA
Type-A USB3.2 Gen2 2x
Type-C USB3.2 Gen2x2 NA
Type-A USB3.1 NA
Type-C USB3.0 N/A
Type-A USB3.0 NA
Type-A USB2.0 NA
USB3.2 Gen 2 Type-C(connect to computer) NA
Card Reader
CardReader 1x SD Express
Smart Card Reader NA
Video Ports
VGA Out NA
HDMI™ 1x HDMI™ 2.1 (8K @ 60Hz / 4K @ 120Hz)
DisplayPort NA
Mini Display Port NA
Keyboard
Keyboard Types_Website 24-Zone RGB Gaming Keyboard with Copilot Key
Keyboard Keys 99KEYS
Keyboard Backlit Y
Keyboard Numeric Yes
Keyboard Color BLACK
Keyboard Language CS Wleft Nokr
Touchpad
Touchpad Silky Smooth Touchpad
WebCam
WebCam HD type (30fps@720p), IR FHD type (30fps@1080p) with HDR
Webcam Feature 3D Noise Reduction+ (3DNR+)
Audio Port
Audio Jack_Website 1x Mic-in/Headphone-out Combo Jack
Audio
Audio Speaker 2x 2W
Audio Woofer NA
Audio Mic Array Microphone

AC Adapter
Adaptor Output 330W adapter
Adaptor 330W
Adaptor Input 90-264Vin
Adaptor Unit Weight (g) 1050
Power Cord Unit Weight (g) 195
Battery
Battery Type 4CELLS/4S1P

Whrs 90 Whrs
Mah 5845 Mah
Battery Unit Weight (g) 367.8
Operating Systems
OS MULTI-LANGUAGE(WIN 11 HOME ADVANCED OLC OA3)
OS Type W11MA

Copilot+ PC Certified N/A
Microsoft Office
OS-Office_Website N/A
Dimension (WXDXH)
Dimension 357 x 284 x 22.20-28.55 mm

Weight (W/ Battery)
Weight 2.7 kg

Security
Security Type_Website Webcam Shutter, Kensington Lock
Certification
Certification Type_Website Meta Ready
Sustainability
EPEAT_Website N/A
Sensor
Fingerprint_Website NA
Fingerprint (Optional) NA

Proximity Sensor NA
NFC (Optional) NA
Warranty
Warranty 24M

Xbox Game Pass
Xbox Game Pass One month of PC Game Pass
Xbox Game Pass Remark *Spec and bundle offer may vary by model and by country. Please refer to the final specification of the product purchased for Xbox Game Pass pre-installed details.
Accessory
Accessory_Website
Extra Bag N/A
Extra Mouse N/A
Remark
I/O Ports Remark NA
Software
Software Killer Control Center, Nvidia App, Nahimic 3, MSI App Player, Mystic Light, Crosshair, Battery Master, MSI Center, Discrete Graphics Mode, MSI AI Engine, AI Noise Cancellation Pro, Intel Application Optimization
Model Info
Series Name Gaming
Segment Name Vector
Segment Name2 Vector16HXAIA
Segment Name3 Vector16HXAI A2XWIG
Barcode Info
EAN 4711377300650
