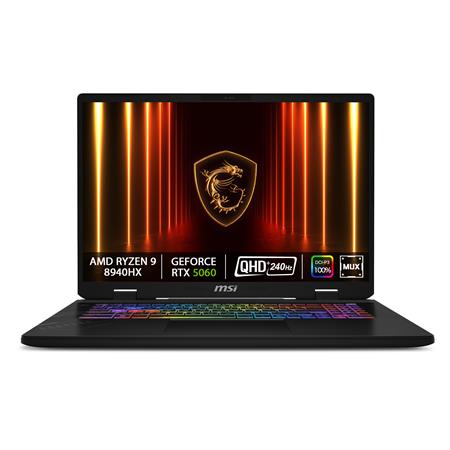

MSI Crosshair A17 HX D8WFKG-011CZ/Ryzen 9 8940HX/32GB/1TB SSD/RTX 5060, 8GB/17"QHD+ IPS, 240Hz/Win 11 home/černá

Part No 9S7-17TL23-011
SKU Number
Website Name Crosshair A17 HX D8WFKG
Platform AMD
Series Name Gaming
Segment Name Crosshair A
Segment Name2
Segment Name3
Model 17TL
MKT Name Crosshair A17 HX D8WFKG
Entity MKT Name
MKT Spec Crosshair A17 HX D8WFKG-011CZ
Chassis Color
Color ID2(GB)/Cosmos_Gray-Black-Black-Black
Color_Website Cosmos Gray
Chassis Material
A Side Metal
B Side Plastic
C Side Plastic (PCR)
D Side Plastic (PCR)
Display
Screen Size
Resolution
LCD Features ANTI-GLARE
Screen Touch Non-touch
Frame Rate 240Hz
Response Time G to G 3ms
Color Range 100% DCI-P3
Screen Size_Website 17"
Pixel_Website QHD+(2560x1600)
Frame Rate_Website 240Hz Refresh Rate
Color Range_Website 100% DCI-P3(Typical)
Display Type_Website IPS-Level
Peak Brightness (HDR Value) N/A
Touch Feature_Website NA
Typical Brightness IPS-level/BENT TYPE/400nit/FOR MS-17TK,400 nits
Typical Brightness Remark N/A
CPU
CPU Type
CPU Core Name Ryzen 9
CPU Number Ryzen 9 8940HX
CPU Basic Clock 2.4GHz
CPU Cores 16
NPU TOPS N/A
CPU Core Name_Website N/A
CPU Number_Website AMD Ryzen™ 9 8940HX Processor
CPU Number_Website For GC AMD Ryzen™ 9 8940HX Processor
CPU Specification_Website 16 cores, Max Boost Clock 5.3 GHz
Chipset
Chipsets
Chipset SoC_Website Integrated SoC
Discrete Graphics
GPU1 Vendor
GPU1 MKT Name GeForce RTX 5060
GPU1 Number RTX 5060
GPU1 MKT Name_Website GeForce RTX 5060
GPU1 Boost Clock_Website Boost Clock 115W Maximum Graphics Power with Dynamic Boost. *May vary by scenario
GPU1 Remark_Website N/A
CPU and GPU Combined Power
Combined Power_Website Max. 170W CPU-GPU Power with MSI OverBoost Technology.
OverBoost Ultra Remark_Website N/A
Scenario Remark_Website *May vary by scenario, *Full Power CPU & GPU
Cooling
Thermal Cooler Boost 5
Fan 2
Fan Technology N/A
Pipe 5
Vapor Chamber NA
Video Memory
GPU1 VRAM Size 8GB
GPU1 VRAM Type GDDR7
Integrated Graphics
GPU1 Graphics_Website N/A
Memory
Memory Size 16GB*2
Memory Module DDR5-5600
Memory(Slot) Max Speed DDR5-5200
Memory Form N/A
Memory Remark_Website *The actual frequency will vary by memory combination and CPU capability.
Memory Slot and Max Capacity
Memory Max Speed DDR5-5200
Memory Slot 2 Slots
Memory Max Capacity_Website Max 96GB
Storage
SSD Form Factor M.2-2280 M-KEY
SSD Size 1TB*1
SSD Interface NVMe SSD PCIe Gen4
SSD 2 Size N/A
SSD 2 Interface N/A
HDD size
2.5" HDD_Website N/A
SSD Remark ”Please consult service center for upgrading SSD.”
Storage Slot
SSD (NVMe PCIe Gen)_Website 1x M.2 SSD slot (NVMe PCIe Gen4), 1x M.2 SSD slot (NVMe PCIe Gen5) Compatible
HDD_Website NA
Max Storage Capacity 8TB
LAN
LAN_Website Gigabit Ethernet
LAN REALTEK/RTL8111H-CG
RJ45 1x
Wi-Fi/ Bluetooth
WLAN/BT_Website AMD RZ616 Wi-Fi 6E, Bluetooth v5.3
WLAN Version
WLAN/BT AMD/RZ616
USB Ports
Type-C (USB3.1 Gen2 / DP / Thunderbolt™3) N/A
Type-C (USB3.1 Gen2 / DP / Thunderbolt™3 optional) N/A
Type-C (USB3.2 Gen2 / DP / Thunderbolt™3) N/A
Type-C (USB3.2 Gen1 / DP / Thunderbolt™3) N/A
Type-C (USB3.2 Gen2 / DP / Thunderbolt™3) with PD charging N/A
Type-C (USB3.2 Gen2 / DisplayPort™) N/A
Thunderbolt™ 4 (DisplayPort™/ Power Delivery 3.0) NA
Thunderbolt™ 4 (DisplayPort™/ Power Delivery 3.1) N/A
Thunderbolt™ 4 (DisplayPort™) N/A
Thunderbolt™ 5 (DisplayPort™/ Power Delivery 3.1) N/A
Thunderbolt™ (DisplayPort™/ Power Delivery 3.0) N/A
Type-C (USB4® / DisplayPort™/ Power Delivery 3.0/ Thunderbolt™ 4 compatible) NA
Type-C (USB4® / DisplayPort™/ Power Delivery 3.1/ Thunderbolt™ 4 compatible) N/A
Type-C (USB3.2 Gen2 / DisplayPort™/ Power Delivery 3.0) 1x
Type-C (USB3.2 Gen2 / DisplayPort™/ Power Delivery 3.1) N/A
Type-C (USB3.2 Gen1 / DisplayPort™/ Power Delivery 3.0) N/A
Type-C (USB3.1 Gen1 / DisplayPort™) N/A
Type-C (USB3.2 Gen1 / DisplayPort™) NA
Type-C USB3.1 Gen2 N/A
Type-C USB3.2 Gen2 N/A
Type-C USB3.2 Gen2 with PD charging N/A
Type-C USB3.1 Gen1 N/A
Type-C USB3.2 Gen1 N/A
Type-A USB3.1 Gen1 N/A
Type-A USB3.2 Gen1 NA
Type-A USB3.1 Gen2 NA
Type-A USB3.2 Gen2 3x
Type-C USB3.2 Gen2x2 N/A
Type-A USB2.0 N/A
USB3.2 Gen 2 Type-C(connect to computer) N/A
Card Reader
CardReader NA
Smart Card Reader N/A
Video Ports
HDMI™ 1x HDMI™ 2.1 (8K @ 60Hz / 4K @ 120Hz)
DisplayPort NA
Mini Display Port NA
Keyboard
Keyboard Types_Website 24-Zone RGB Gaming Keyboard with Copilot Key
Keyboard Keys 99KEYS
Key Travel 1.7
Keyboard Numeric Yes
Keyboard Color BLACK
Keyboard  Language CS Wleft Nokr
Touchpad
Touchpad NA
WebCam
WebCam HD type (30fps@720p)
Webcam Feature 3D Noise Reduction (3DNR)
Audio Port
Audio Jack_Website 1x Mic-in/Headphone-out Combo Jack
Audio
Audio Speaker 2x 2W
Audio Woofer NA
Audio Mic Array Microphone
Audio Solution_Website Nahimic 3 Audio Enhancer, Hi-Res Audio Ready
AC Adapter
Adaptor 240W
Adaptor Input 90-264V
Adaptor Unit Weight (g) 570
Power Cord Unit Weight (g) 195
Power Cord Type EU
Battery
Battery Type 4CELLS/4S1P
Battery Cell_Website 4-Cell
Whrs 90 Whrs
Mah 5815 Mah
Battery Unit Weight (g) 322
Battery Life
Operating Systems
OS MULTI-LANGUAGE(WIN 11 HOME ADVANCED OLC OA3)
OS Type
OS_Website Windows 11 Home (MSI recommends Windows 11 Pro for business.)
Copilot+ PC Certified N/A
Microsoft Office
OS-Office_Website N/A
Dimension (WXDXH)
Dimension 383.2 x 279.9 x 22.2-29.7 mm
Dimension(Inches)_Website 15.09" x 11.02" x 0.87-1.17"
Weight (W/ Battery)
Weight 2.8 kg
Weight(lbs)_Website 6.17 lbs
Security
Security Type_Website Firmware Trusted Platform Module(fTPM) 2.0, Webcam Shutter, Kensington Lock
Certification
Certification Type_Website NA
Sustainability
EPEAT_Website N/A
Sensor
Fingerprint
Fingerprint_Website N/A
Fingerprint (Optional) N/A
Ambient Light Sensor_Website N/A
Gyroscope_Website N/A
Accelerometer_Website N/A
Magnetometer_Website N/A
Proximity Sensor N/A
NFC N/A
Warranty
Warranty 24M
Warranty_Website 2 years limited warranty
Xbox Game Pass
Xbox Game Pass One month of PC Game Pass
Xbox Game Pass Remark *Spec and bundle offer may vary by model and by country. Please refer to the final specification of the product purchased for Xbox Game Pass pre-installed details.
Accessory
Extra Bag N/A
Extra Mouse N/A
Remark
Remark 1_Website
Software
Software Nvidia App, Nahimic 3, MSI App Player, Mystic Light, MSI Companion, MSI Center, Discrete Graphics Mode, MSI AI Engine, AMD Radeon Software
Model Info
Segment Name2 CrosshairA17HXD
Segment Name Crosshair A
Series Name Gaming
Segment Name3 CrosshairA17HX D8WFKG
Extra Info
EOL Date
Barcode Info
UCC14
UPC
JAN
EAN 4711377356855
