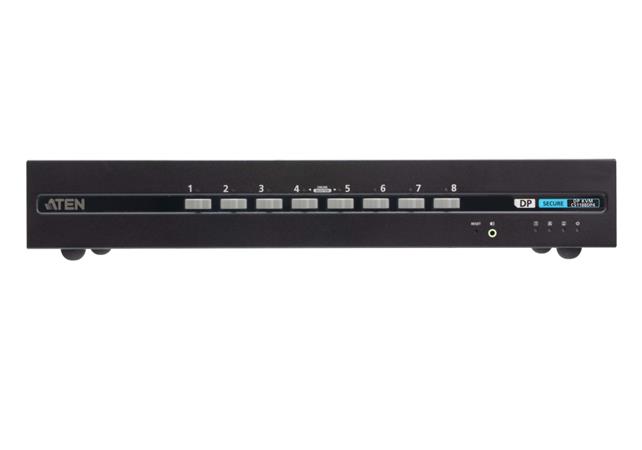

ATEN PSD PP v4.0 Secure KVM Switch CS1188DP4 is specifically designed to meet the stringent security requirement of secure defense and intelligence installations. ATEN PSD PP v4.0 Secure KVM Switch CS1188DP4 is compliant with PSD PP v4.0 (Protection Profile for Peripheral Sharing Device, Version 4.0) standard certified by the National Information Assurance Partnership (NIAP).

ATEN PSD PP v4.0 Secure KVM Switch CS1188DP4 provides isolation between computer sources and peripherals while sharing a single keyboard, mouse, monitor, and speaker set between connected computers of various security classifications. Compliance with PSD PP v4.0 ensures peripheral sharing capabilities provide maximum user data security when switching port focus, preventing unauthorized data flows or leakage between connected sources. Key protections include isolation and unidirectional data flow, restricted peripheral connectivity and filtering, user data protection, configurable device filtration and management, strict audio filtration, and always-on tamper-proof design, keeping sensitive assets isolated and providing advanced security and a user friendly design for instantly secure deployment.

To enhance security, ATEN PSD PP v4.0 Secure KVM Switch CS1188DP4 only offers manual switching methods including front panel pushbuttons and Remote Port Selector (RPS) 1. With multi–layered security, ATEN PSD PP v4.0 Secure KVM Switch CS1188DP4 ensures high-level desktop security and data safekeeping for applications such as government and military agencies, healthcare providers, banking and finance institutions, and other organizations that often handle sensitive or confidential data on separate networks.

Note:
1. The Remote Port Selector is not supplied in the package and requires a separate purchase.

NIAP Common Criteria Compliant ¦ Compliant with PSD PP v4.0 (Protection Profile for Peripheral Sharing Device, Version 4.0) security requirements

¦  Multi-Layered Security ¦ Always-on chassis intrusion detection – renders the ATEN PSD PP v4.0 Secure KVM Switch series inoperable when physical tampering is detected
¦ Tamper-evident labels – provides visual indication of any attempt to access the ATEN PSD PP v4.0 Secure KVM Switch’s internal components
¦ Non-reprogrammable firmware – prevents reprogramming the ATEN PSD PP v4.0 Secure KVM Switch’s firmware
¦ Restricted peripheral connectivity – non-authorized HIDs (Human Interface Devices), and video are rejected
¦ Port selection via pushbuttons / Remote Port Selector  (RPS) 1only to enhance security
¦ LED indicators for peripheral filtering and KVM security status
¦ Strict audio filtration protects against audio leakage
¦ Rugged metal enclosure

¦  Data Channel Isolation and Unidirectional Data Flow ¦ True data path isolation – data cannot be transferred between computers
¦ The ATEN PSD PP v4.0 Secure KVM Switch controls and isolates data flow between console devices and connected computers
¦ Unidirectional data flow between console devices and the selected computer is ensured
¦ Supports analog audio (speaker only) 2

¦  User Data Protection ¦ The ATEN PSD PP v4.0 Secure KVM Switch’s keyboard / mouse data is automatically deleted after transmission and automatically purged when the KVM port focus is switched

¦  Security Management ¦ Supports administrative configuration of keyboard / mouse ports filtering to reject specific USB HID devices
¦ Provides administrative functions for authorized administrators to audit KVM log data

¦  Superior Video Quality ¦ Superior video quality – up to 4K (3840 x 2160 @ 30 Hz) 3
¦ Video DynaSync™ – Exclusive ATEN technology eliminates boot-up display problems and optimizes resolutions when switching among different sources

1. The Remote Port Selector is not supplied in the package and requires a separate purchase.
2. Only analog speaker data input is supported.
3. The DisplayPort Secure KVM Switch series supports console video output resolutions up to 3840 x 2160 @ 30 Hz.


Package Contents
1x CS1188DP4 8-Port USB DisplayPort Secure KVM Switch
1x Power Cord
1x User Instructions
1x User Instructions
