Detail produktu

ATEN KVM console CL-5708MA 8PC KVM 17”LCD

Výrobce: ATEN

Kód: 325686

PartNumber: CL-5708MA

EAN: 4710423775350

Obvyklá dodací lhůta: 5 (dny)

Záruční lhůta: 24 (měsíce)

Záruční lhůta EU: 24 (měsíce)

Přihlásit se

Vaše cena a stav skladu se zobrazí po přihlášení.

Obrázek produktu

8-portový KVM přepínač, 17" LCD Display a klávesnice (102 kláves), lze dát do 19" racku, USB port pro sdílení USB periferie

8-Port Slideaway™ LCD KVMP Switch

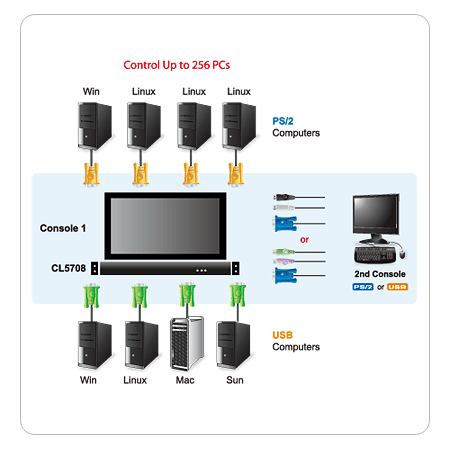

The CL5708 Slideaway™ LCD KVMP Switch is a control unit that allows access to multiple computers from a single PS/2 or USB KVM (keyboard, video, and mouse) console. A single CL5708 can control up to 8 computers. As many as 31 additional KVM switches can be daisy-chained to the CL5708, so that up to 256 computers can all be controlled from a single KVM console.
The CL5708 offers a space-saving, streamlined approach to KVM switch technology by integrating a keyboard, 17" LCD monitor, and touchpad in a 1U rack-mountable sliding housing.

Integrated KVM console with 17" LCD monitor in a Slideaway™ housing
Available with or without Fingerprint Identification Reader**
**The fingerprint reader can be used as an alternate means of logging in to the switch. From 1 to 4 fingers can be scanned for each user and the administrator, with any one of the recorded fingerprints used to log in.
Space saving technology - up to two consoles (one bus) control up to 8 computers
Daisy-chain up to 31 additional units - control up to 256 computers from a single console (With compatible KVM Switches: ACS1208A, ACS1216A, CS1708A,CS1716A)
Dual Interface - supports computers and console with PS/2 or USB keyboards and mice
LCD module USB port allows each computer to access USB peripherals*
* The USB peripheral function only works with USB cable set connections. It will not work with PS/2 cable set connections.
LCD module rotates up to 115 degrees for a more comfortable viewing angle
Multiplatform support - Windows 2000/XP/Vista, Linux, Mac, and Sun
Supports multimedia USB keyboards for PC, Mac and Sun
Auto PS/2 and USB interface detection
Keyboard and mouse emulation (PS/2 and USB) for smooth switching and simultaneous booting of multiple computers even when the console focus is elsewhere
Supports external USB mouse
Superior video quality - supports resolutions up to 1280 x 1024 @ 75 Hz
No software required - convenient computer selection via front panel pushbuttons, hotkeys and multilingual on-screen display (OSD) menus
Auto-senses station's position on daisy-chained installations; no need for manual dip switch setting; front panel led indicates station's position
Port names automatically reconfigured when station sequence is changed
Two level password security - only authorized users can view and control computers
Supports one administrator and four user accounts with separate profiles
Auto Scan mode enables continuous monitoring of user-selected computers
Broadcast support - commands from the keyboard can be broadcast to all available computers on the installation
Hot pluggable - add or remove computers without having to power down the switch
Beeper on/off via hotkey and OSD
Firmware upgrades to all the chained KVM switches at the same time via the daisy-chain cable

Package Content
1x CL5708 KVMP Switch with standard Rack Mount Kit
2x Custom KVM Cable Sets
1x 5-in-1 USB / PS/2 Console Cable
1x Firmware Upgrade Cable
1x Power Cord (AC Power Models)
1x Grounding Wire
1x User Manual
1x Quick Start Guide

Rack Mounting Kit                         Depth
2X-010G (Long/Optional)              68cm - 105cm
Short (Standard)                            42cm - 77cm

Easy Installation Rack Mounting Kit        Depth
2X-012G (Long/Optional)                       68cm - 105cm
2X-011G (Short/Optional)                       57cm - 70cm

K výrobku je k dispozici pouze manuál v angličtině (nemá český manuál).

Ke stažení, odkazy
Datasheet (4342 KB)
User manual (3665 KB)
Schema zapojení (33 KB)
Zadní strana (43 KB)
Easy Rack Mounting Info
Quality Assured LCD KVM Solutions from ATEN
